rAthena Scripting Documentation



warp

The warp command in rAthena is used to create teleportation points or to move players programmatically. It can be used as a top-level command for permanent warp portals or as a script command to instantly teleport players within an NPC script.

🚪 warp Top-Level Command

The `warp` top-level command defines a static, permanent warp portal on a specific map. These warps are loaded when the map server starts and function as fixed entry/exit points for players.

Here is the standard structure for declaring a permanent warp portal:
<from mapname>,<fromX>,<fromY>,<facing>%TAB%warp%TAB%<warp name>%TAB%<spanx>,<spany>,<to mapname>,<toX>,<toY>

Parameter Explain:

  • from mapname: The map where the warp point will be located.
  • fromX, fromY: The coordinates of the warp point on the from mapname.
  • facing: The direction the warp object faces (irrelevant for functionality, usually 0).
  • warp name: A unique name for the warp NPC. This can be used with enablenpc or disablenpc.
  • spanx, spany: Define a rectangular area around fromX, fromY. If a player steps anywhere within this area, the warp is triggered.
  • to mapname: The destination map.
  • toX, toY: The destination coordinates on the to mapname.
Example Code:
// A warp portal from Prontera to Payon.
// Players entering the 3x3 area at prontera (150, 150) will be warped to payon (100, 100).
prontera,150,150,0	warp	WarpToPayon	1,1,payon,100,100

// Another warp portal from Payon back to Prontera.
payon,103,103,0	warp	WarpToProntera	1,1,prontera,153,153

In this script:

  • prontera,150,150,0: This defines the map name (prontera), x and y coordinates (150, 150) where the warp portal is located, and the facing direction (4, which is south) warping going to payon,100,100.
  • payon,103,103,0: This specifies the map name (payon) and the x and y coordinates (103, 103) where the player will be warped going to prontera,153,153.
  • 1,1: These are the spanx and spany. This means the warp will activate if a player steps within a 1x1 cell area centered at the warp's coordinates.

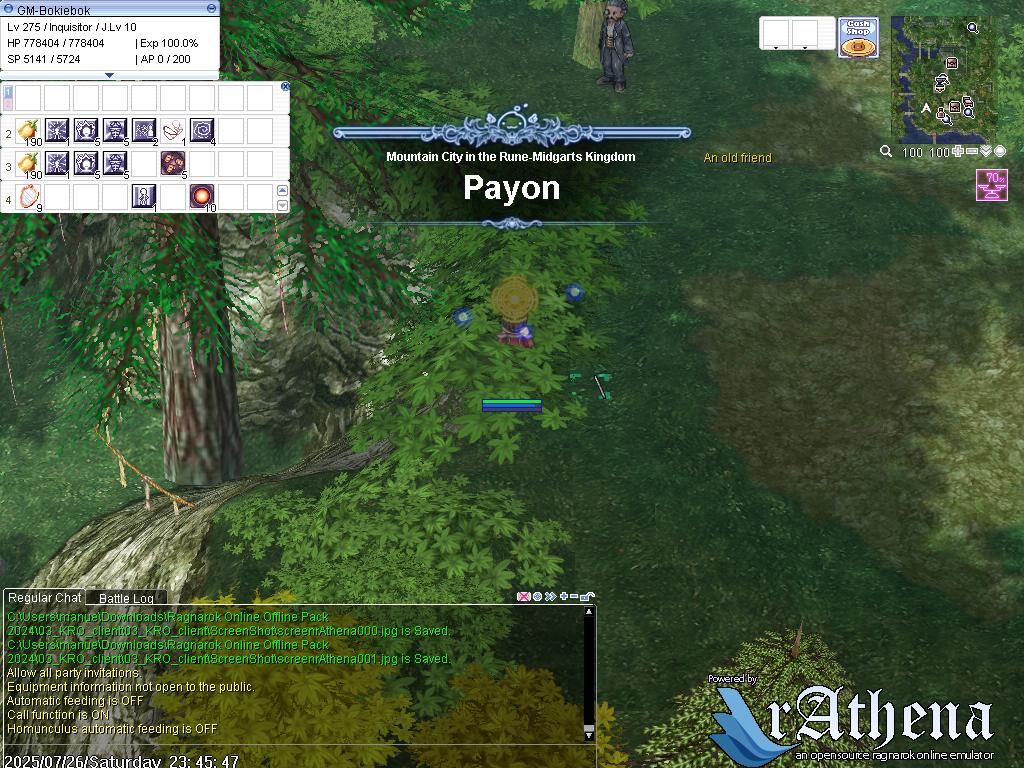

This would look like this:


✨ warp Script Command

The warp script command is used within an NPC script to instantly teleport a player to a specified location. This is useful for quests, events, or custom teleporters.

📝 Command Syntax:
warp "<map name>",<x>,<y>{,<char id>};

Parameter Explain:

  • "<map name>": The destination map name (must be in quotes).
    Special Map Names:
    • "Random": Warps the player to a random location on their current map.
    • "SavePoint": Warps the player back to their saved spawn point.
  • "<x>,<y>: The destination coordinates on the map. Using 0,0 will warp the player to a random location on the map.
  • {,<char id>}: (Optional) The character ID of the player to warp. If omitted, it defaults to the currently attached player.
Example Code:
//===== rAthena Script =======================================
//= Wizard Teleporter NPC
//===== By: rAthena AI Assistant ============================
//= Warps the player to a specified location, including random spots and save point.
//============================================================
geffen,104,50,5	script	WizTeleporter	767,{
    mes "[WizTeleporter]";
    mes "Hello! Where would you like to go?";
    next;

    // Using select() to get the player's choice
    .@menu_choice = select("Payon:Alberta:Random Warp:SavePoint");

    switch (.@menu_choice) {
        case 1:
            mes "Warping you to Payon!";
            close2;
            warp "payon",100,100;
            break;
        case 2:
            mes "Warping you to Alberta!";
            close2;
            warp "alberta",50,50;
            break;
        case 3:
            mes "Warping you to a random spot on this map!";
            close2;
            warp "Random",0,0;
            break;
        case 4:
            mes "Warping you to your saved spawn point!";
            close2;
            warp "SavePoint",0,0;
            break;
    }
    end;
}

In this script:

Defines a Teleporter NPC. This NPC offers players a menu with four options:

  • Payon: Warps the player to specific coordinates in Payon.
  • Alberta: Warps the player to specific coordinates in Alberta.
  • Random Warp: Warps the player to a random location on their current map (Prontera, in this case).
  • SavePoint: Warps the player to their last saved spawn point.

It uses the select() function to capture the player's choice and a switch statement to execute the corresponding warp command.

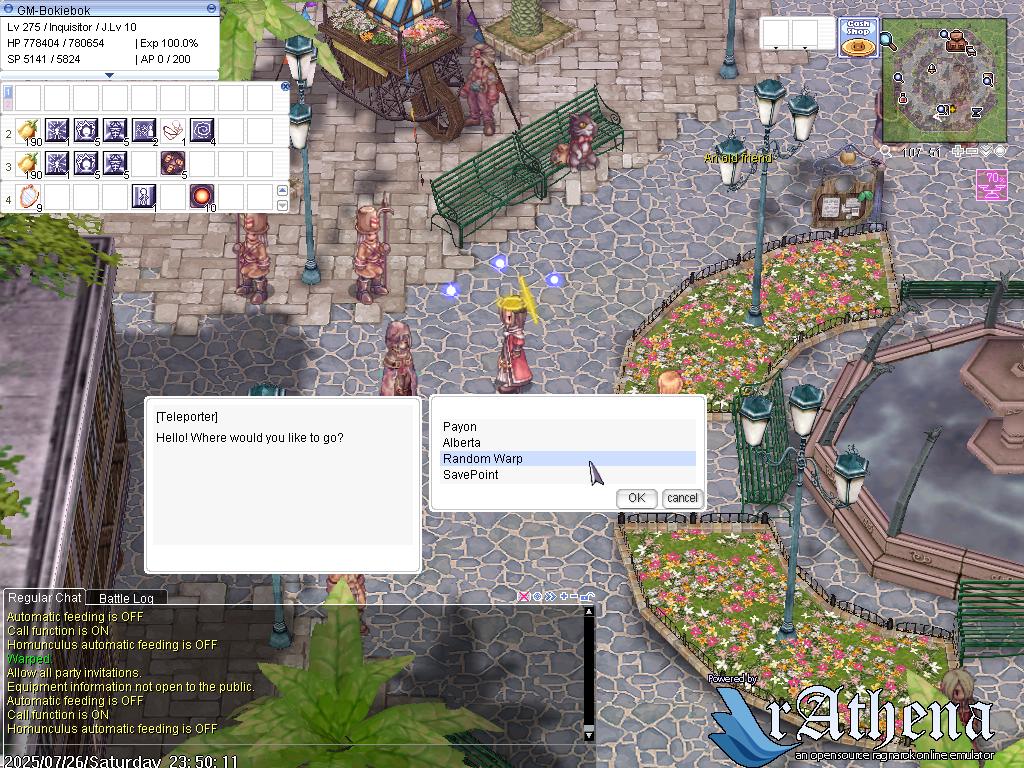

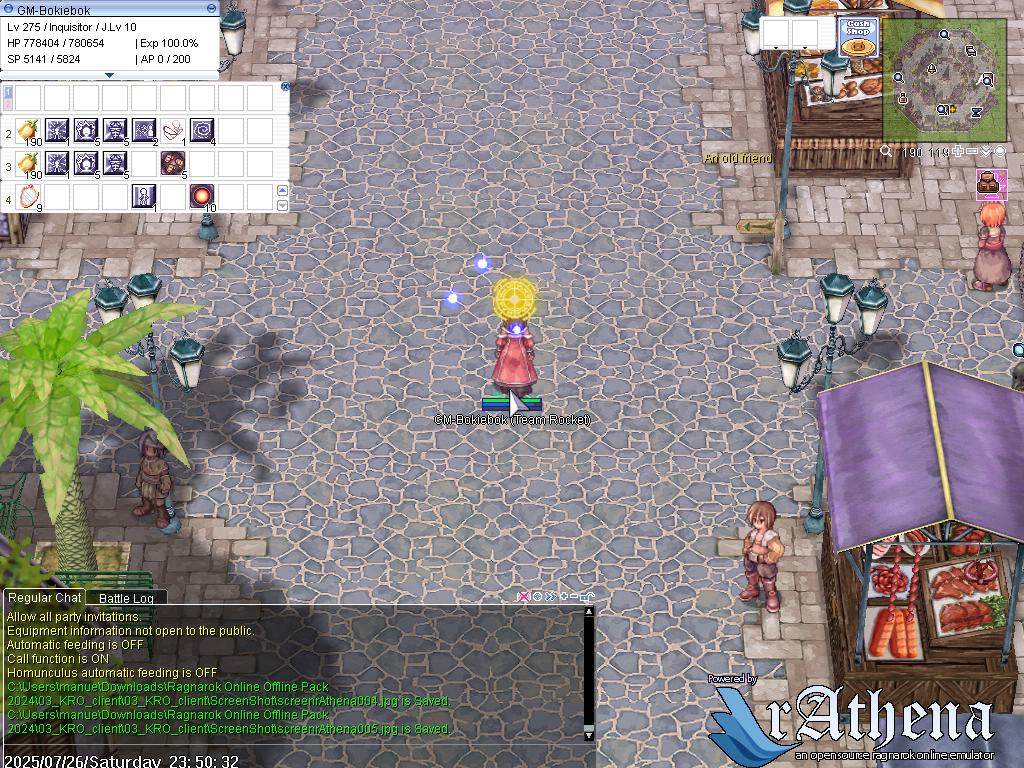

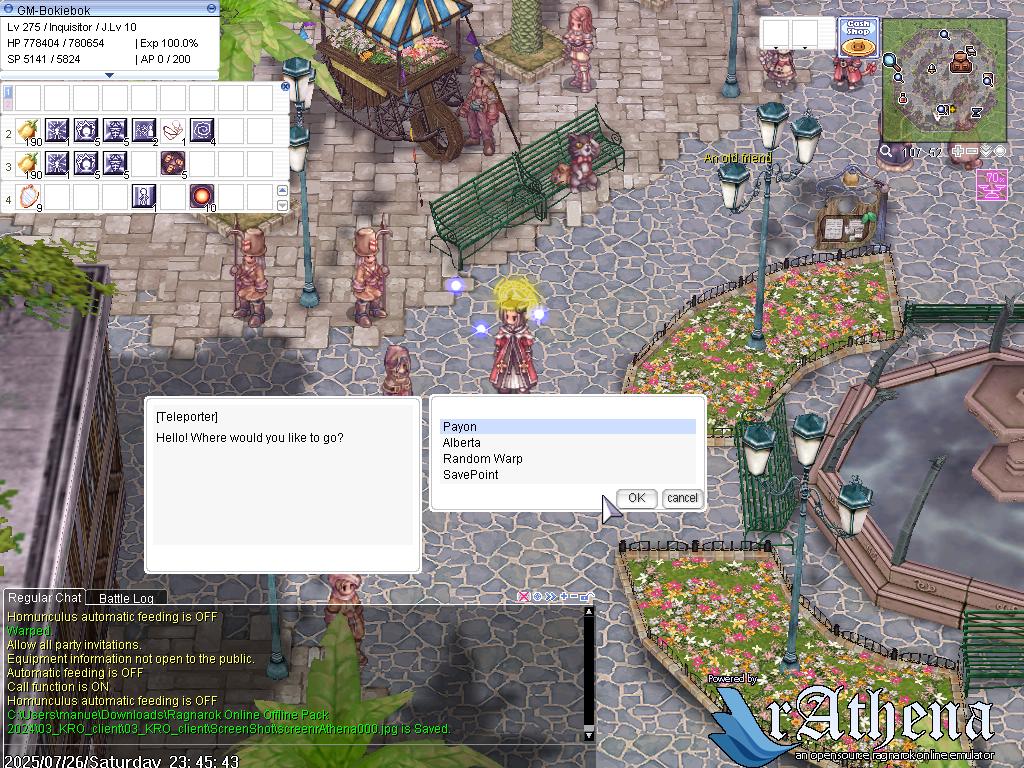

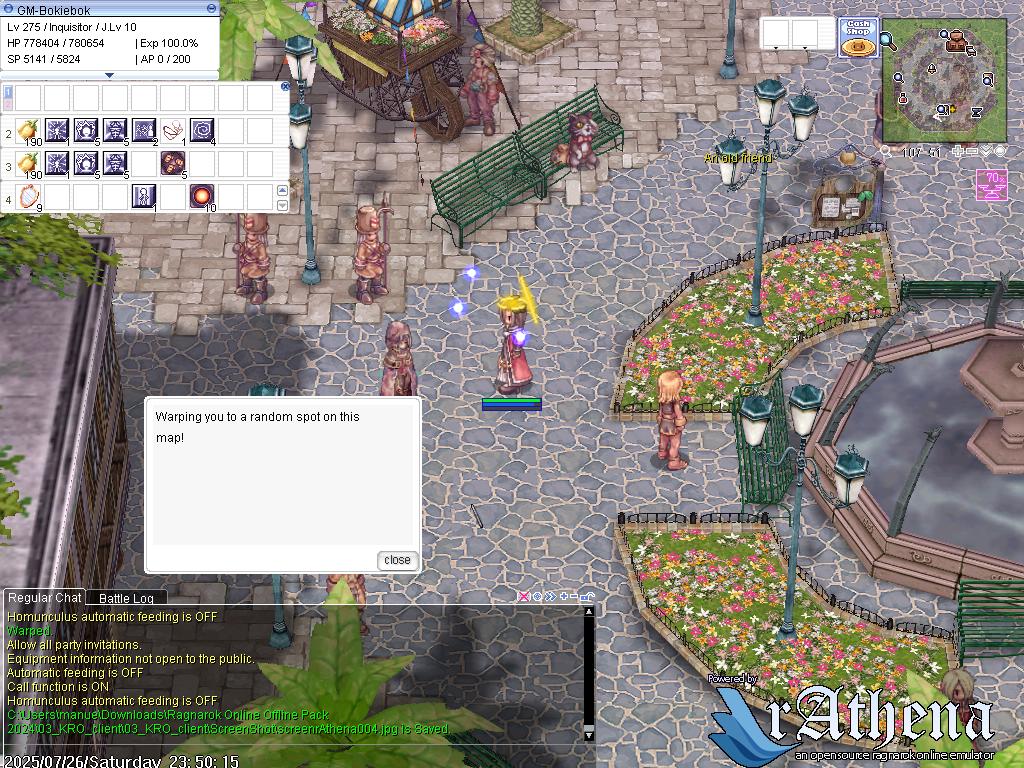

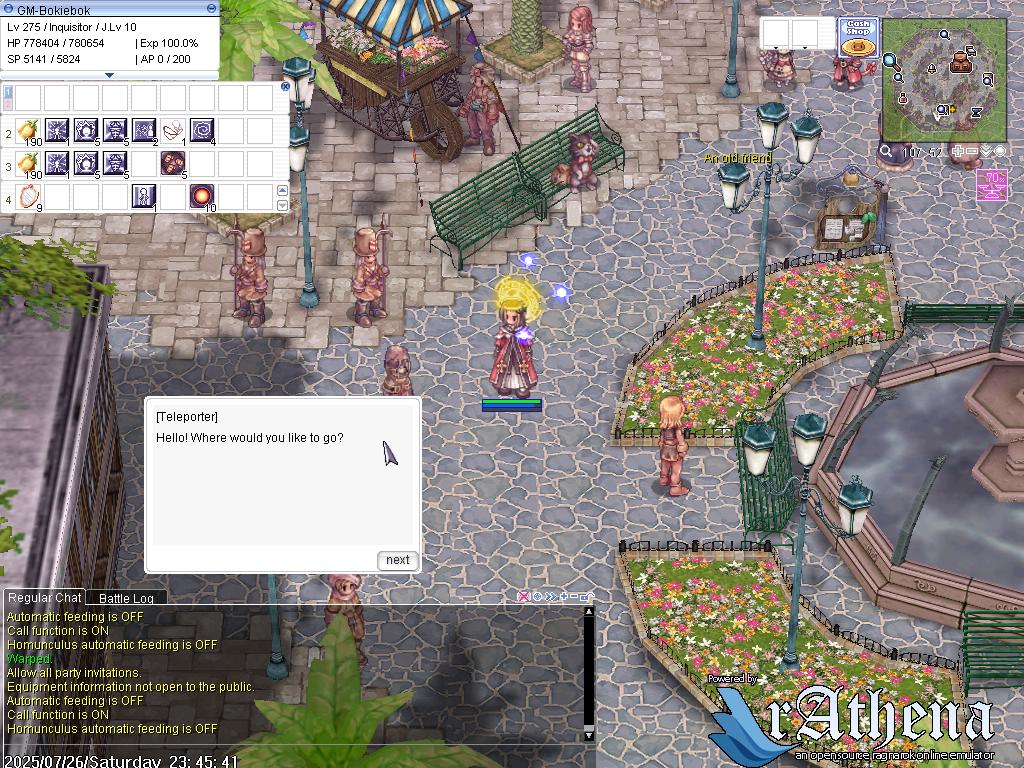

This would look like this:
